●Wear Your "Personal Health Clinic" on Your Fingertips, 24/7 Health Protection
●Medical-Grade ECG Monitoring • 8-Item Body Composition Analysis • 5ATM Diving-Grade Waterproofing • 5.7g Ultra-Lightweight Wearing • AIZO RING Smart Management
Product Details

Featuring a 316L antibacterial stainless steel all-metal body, equipped with medical-grade ECG+PPG dual sensors, enabling multi-dimensional health monitoring including ECG, body fat, and body temperature. Combined with vibration alerts and a 25-day ultra-long standby time, it creates a professional-grade portable health management device.


Core Value Analysis:

1. Medical-Grade Precision Monitoring Capability

Equipped with a high-precision medical-grade ECG sensor, it can detect 8 types of heart health risks, including sinus arrhythmia and atrial fibrillation. The data has clinical reference value, providing early warning for cardiovascular health.


Equipped with a BIA body fat sensor and a PPG blood oxygen sensor, it supports analysis of 8 body composition parameters, including body fat percentage, water percentage, and BMI. It also provides 24-hour continuous monitoring of heart rate, blood oxygen, and body temperature for a comprehensive understanding of your body's condition.


The built-in sleep analysis algorithm not only records sleep duration but also assesses and scores sleep quality, generating trend analysis reports to help users address specific sleep issues.


2. Ultimate Comfortable Wearing Experience

The all-metal body is crafted from 316L antibacterial stainless steel, offering rust resistance and antibacterial properties. Long-term wear is unlikely to cause skin allergies, making it suitable for sensitive skin.


The device measures only 8.5mm × 2.4mm (width × thickness) and weighs a mere 5.7g. Its ultra-thin design allows for a "feel-free" wearing experience, eliminating any discomfort during daily work, exercise, or sleep.


Offers 8 US standard sizes (#6-#13, inner diameter ranging from 16.5mm to 22.3mm), ensuring a stable wearing experience for users with different finger sizes through precise size adaptation.


3. Practical Design for All Scenarios

5ATM diving-grade waterproof (50 meters depth), supporting wearing in swimming, diving, showering, and other scenarios, eliminating the need for frequent removal and ensuring uninterrupted health data recording.


Diverse vibration reminder functions cover scenarios such as incoming calls, alarms, medication, and drinking water, while also supporting abnormal health indicator alerts (such as high/low heart rate), ensuring no important information is missed.


Supports offline storage of 1 week's health data, continuing to record even with poor network conditions, and automatically syncing to the AIZO RING APP after connecting to the internet, making data management more flexible.


4. Safe and Reliable Product Guarantee

Obtained multiple international medical certifications such as NMPA, FDA, and TGA, and has passed compliance certifications such as FCC, CE, and CCC, ensuring product quality and data security meet mainstream global standards.


Equipped with a 16mAh high-density lithium polymer battery, it offers 4-6 days of continuous use (24 hours) and up to 25 days of standby time, reducing the hassle of frequent charging. The magnetic contact charging design allows for a full charge in just 1.5 hours.


Supports OTA (Over-The-Air) online upgrades. The device firmware can be updated in real-time via the AIZO RING APP, continuously optimizing monitoring algorithms and functionality to extend the product's lifespan.


Rich Daily Health Management Scenarios


Scenario 1: Heart Health Protection for Middle-Aged and Elderly Individuals (For those concerned with cardiovascular health, and those with underlying conditions such as hypertension/hyperlipidemia)


Scenario 2: Stress and Sleep Management for Working Professionals (For urban white-collar workers in high-pressure work environments and those who frequently stay up late)


Scenario 3: Exercise and Body Composition Management for Fitness Enthusiasts (For fitness enthusiasts concerned with body fat percentage and exercise effectiveness)


Scenario 4: Menstrual Cycle Management for Female Users (For women who need to record their menstrual cycles and are concerned about endocrine health)

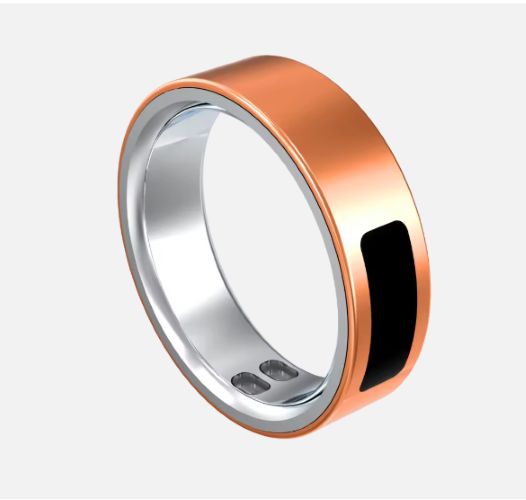

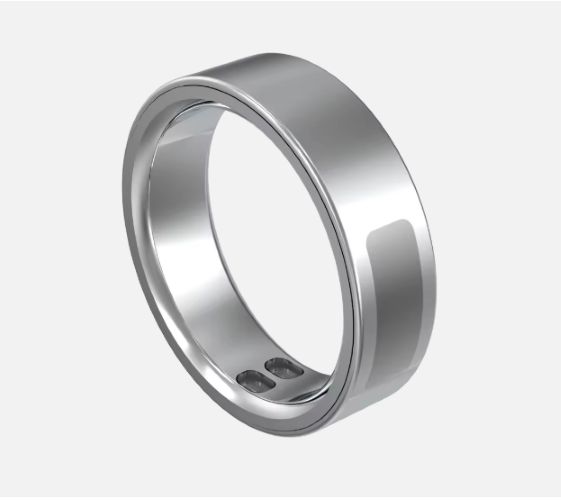

TM22 Smart Ring Product Specifications
Product Introduction
Product ModelTM22 Smart Ring
Product TypeSmart Health Ring
Product Selling Points1. Fingertip TrendsArtistic   ceramics combined with antibacterial stainless steel, exquisite and stylish,   full of technological feel, comfortable and imperceptible to wear.
2. Fingertip HealthSleep   management and sleep quality assessment, 24-hour health monitoring, and   analysis of daily activities and exercise.
3. Vibration AlertIncoming   call vibration alerts, abnormal health indicator warnings, alarm clock   reminders, medication reminders, and daily event reminders.
Structural   Parameters
Waterproof   Rating5ATM
Outer Ring316L Antibacterial   Stainless Steel
Inner Circle316L Antibacterial   Stainless SteelInner   diameter: 8 sizes, #6, #7, #8, #9, #10, #11, #12, #13
Body Size7.5mm x 2.5mm,Width *   Thickness
Packaging SizeTBD
Bare Weight5.5gThe   inner diameter varies slightly.
Hardware Parameters
Main   ControllerAB2026B3
MotorUltra-low power motorOptional
TouchMulti-directional   touchSupport
PPG SensorLC12SSupport
Body   Temperature SensorCT7112Support
AccelerometerBMA510Support
StorageIt can store one week of   offline data.
BluetoothBLE5.4
Power Parameters
Battery Life4-6 daysWear   continuously 24 hours a day
Standby Time25 days
Battery   Capacity17mAHHigh-density   Batteries
Battery TypeLithium Polymer
Charging   MethodMagnetic contact charging
Charging time<1.5 hours
Mobile App
APPAIZO RINGIt   can be downloaded from both iOS and Android app stores.
Mobile   operating systemSupports Android 5.0+, iOS   9.0+, and Harmony 2.0+.
Feature List
Motor   vibration alertIncoming call   vibration alertOptional:   Ring vibrates to alert you when a call comes in.
Health indicator abnormality warningOptional   warnings include: high heart rate, low heart rate, low blood oxygen, high   body temperature, and high stress.
Fingertip alarm clock reminderOptional:   The ring will vibrate to remind you when the alarm time is up.
Daily Event RemindersOptional   reminders include medication reminders, water intake reminders, birthday   reminders, anniversary reminders, and schedule reminders.
Health   ManagementSleep managementSupports   sleep data monitoring, sleep quality assessment and scoring, and sleep   quality trend analysis.
Body temperature monitoringSupports
Heart rate monitoringSupports
Blood oxygen monitoringSupports
Heart rate variabilitySupports
Emotional ManagementOptional   features include mood reports, mood distribution, stress index, and fatigue   index.
Physical recovery assessmentSupports
Menstrual cycle managementSupports
Sports   ManagementDaily activity recordSupports
Step counting statisticsSupports
Activity distanceSupports
CaloriesSupports
Specialized sportsSupports walking,   running, and cycling
Sports data synchronizationData can be synced to   Google Health Connect and Apple Health.
LanguageAPP languageSupports more than 30   languages
Software   upgradeOTA upgradeUpgrade via mobile   app
Other   FunctionsRestore factory   settingsSupports
Wearing detectionSupports
RestartSupports
Firmware information displaySupports
Environmental   Parameters
Operating   Temperature-20℃ to 50℃
Charging   Temperature0℃ to 40℃
Operating   Humidity10%-90%RH (non-condensing)
Storage   Temperature-30℃ to 70℃
Storage   Humidity5%-90%RH (non-condensing)
Quality   Certification
Certification   CertificateFCC、CE、ROHS、REACH、CCC、SRRC、MSDS、UN38.3
